LAMILUX Glass Roof PR60

Glass roof constructions according to your wishes

Free types, optical highlights and aesthetic standards

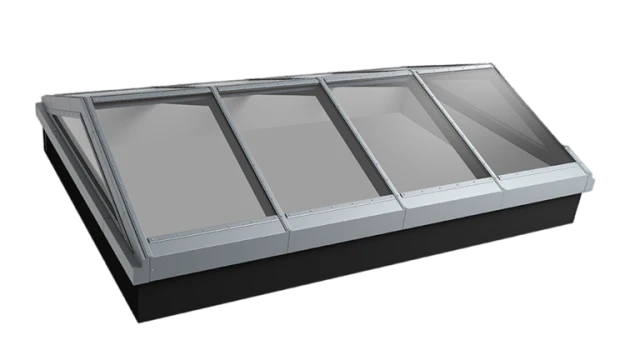

Lamilux Glass Roof PR60

The LAMILUX Glass Roof PR60 combines architectural freedom with reliable performance and generous natural daylight. Its slim aluminium profile system can be adapted to a wide variety of roof shapes—from mono-pitch, ridged and hipped roofs to complex polygonal structures—with roof inclinations ranging from 2° to 75°. An overlapping, multi-layered sealing system ensures controlled drainage of rainwater and condensation, while the thermally separated construction reduces heat loss and helps minimise the risk of condensation at the glass edges. A broad selection of insulating, solar-control, light-diffusing and sound-insulating glazing allows the glass roof to be tailored to individual project requirements. Integrated ventilation flaps provide natural ventilation and can also be configured as a smoke and heat exhaust system. Optional sun protection, photovoltaic solutions and intelligent control technology complete this versatile skylight for demanding architectural concepts.

Optimised sealing and drainage system

  • Efficient ventilation of glazing rebates and controlled drainage of water and condensate
  • Overlapping, multi-layered sealing system, designed without direct joints and a secondary drainage system in the inner sealing layer
  • Joint-free, continuous drainage level on the mullion/rafters
  • Increase and improvement of the surface temperature on the glass edge and subsequent reduction in risk of condensation

Safety and natural SHEVS

  • General Building Approval for the system
  • The system bears the DVS quality seal and is certified according to DIN EN 1090-3
  • Fire protection and noise insulation (up to 46 dB according to EN 10140-2): Sandwich panels (trapezoid profiles) with mineral core insulation layer, roof-wall panel corresponds to construction material class A2

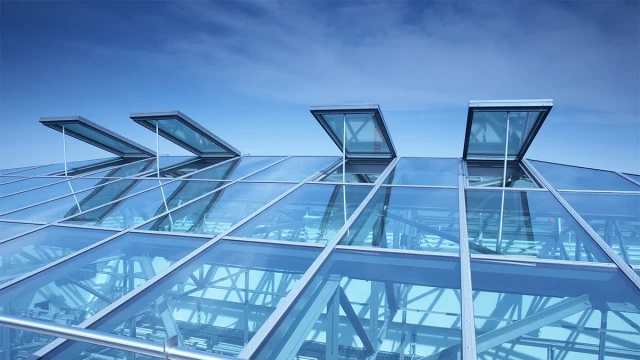

  • Integration of the Smoke Lift Glass Roof PR60​: Tested smoke and heat exhaust ventilation system according to EN 12101-2
  • Integrated control technology available
  • Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5
  • Optional use of a laser grid as fall-through protection when the NSHEV is open

Active energy management

  • Reduction of heat loss in the frame
  • Daylight + photovoltaics â€“ elegantly provided in northern light sheds
  • Life-cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Glass Roof PR60 in accordance to ISO EN 15804
Shaping the future of sustainable construction with new technologies

Lamilux Glass Roof PR60 Passivhaus

As the first sloped glazing system certified to the Passivhaus standard, the Glass Roof PR60 Passivhaus combines architectural freedom with outstanding energy efficiency. Certified in the highest Passivhaus efficiency class phA, the complete system achieves a heat transmission coefficient of just 0.81 W/(m²K). Its thermally optimised mullion-and-transom construction maintains high internal surface temperatures, helping to minimise condensation and prevent mould formation while creating a comfortable indoor climate. Custom-made in real glass, the system can be adapted to a wide variety of sizes, shapes and roof inclinations and is optionally available in a wide range of RAL colours. A torsion-resistant aluminium structure, tested weather resistance and integrated secondary drainage ensure lasting stability and reliable performance. Optional fall-through protection and tested fire performance complete this highly efficient glass roof solution for sustainable and ambitious architectural concepts.

Made-to-order

  • Custom-made mullion-and-transom building systems in real glass for creative roof architecture in all sizes and shapes (any inclination angle infinitely variable)
  • RAL colour of your choice (optional)

Stability and safety

  • General Building Approval for the system
  • The system bears the DVS quality seal and is certified according to DIN EN 1090-3
  • Optimum stability for architectural design freedom
  • Watertightness, air permeability and resistance tested to DIN EN standards
  • Torsion-resistant supporting structure made of premium quality aluminium with integrated screw channel
  • Secondary water drainage in the inner sealing level – interior aluminium construction does not get in contact with water
  • Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5
  • Optional use of a laser grid as fall-through protection when the NSHEV is open

Energy efficiency

  • First sloped glazing certified to Passivhaus standard
  • Highest Passivhaus efficiency class – phA advanced component
  • Heat transmission coefficient (UCWi) is 0.81 W/(m²K)
  • Optimum solar gains
  • Thermal performance values calculated based on DIN EN ISO 10077-1 and 10077-2
  • Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Glass Roof PR60 Passivhaus in accordance with ISO 14025 and EN 15804 (EPD – modules A1 - D)
LAMILUX Windows Fire Resistance - design and comfort without compromising on safety

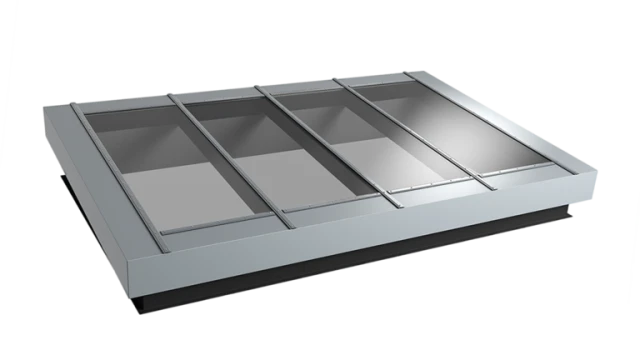

Glass Roof Fire Resistance

The LAMILUX Glass Roof Fire Resistance combines generous daylight and architectural flexibility with certified protection in the event of a fire. Classified according to EN 13501-2, the complete system maintains its load-bearing capacity, room-enclosing function and thermal insulation for 30 or 60 minutes, helping to prevent fire from spreading to adjoining parts of the building. Designed for larger glazed areas, the self-supporting construction can be individually adapted to the dimensions and conditions of the project and installed at roof inclinations ranging from 2° to 80°. Its slim cover strips create an appearance similar to conventional LAMILUX glass roofs, while fire-resistant glazing, thermally separated profiles and an optimised sealing and drainage system ensure reliable performance and a reduced risk of condensation. Assembled directly on site, the LAMILUX Glass Roof Fire Resistance offers a flexible and design-oriented solution for demanding fire protection concepts.

Wide range of products in high quality standards

  • Various fire-resistant windows available in all fire resistance classes
  • Design: German Design Award 2023 in the category "Excellent Product Design - Building and Elements" for our new Glass Skylight Fire Resistance REI 90
  • Visible elements of the supporting structure with RAL coatings
  • Visible or concealed screw connection of the ceiling strips possible

Safety

  • Fire resistance with the functional integrity of the complete system certified to 30 minutes / 60 minutes / 90 minutes
  • Resistance to external fire exposure from flying sparks and radiating heat with classification B, roof (t1) as per DIN EN 13501-5
  • Classification according to EN 13501-2 for:
    • Fire spread to adjoining building parts is prevented
    • Escape and rescue routes are kept clear
    • The development of large fires is prevented
    • Rescue and extinguishing work is facilitated

Active energy management

  • Reduction of heat loss in the frame
  • Optimised building energy balance through improved thermal insulation and isothermal processes
  • Combination of fire protection properties and energy benefits

Optimised sealing and drainage system

  • Efficient ventilation of glazing rebates and controlled drainage of water and condensate
  • Overlapping, multi-layered sealing system, designed without direct joints and a secondary drainage system in the inner sealing layer
  • Joint-free, continuous drainage level on the mullion/transom
  • Increase and improvement of the surface temperature on the glass edge and subsequent reduction in risk of condensation
